SIEMENS 6SN1118-1NJ01-0AA0 UNIVERSAL CONTROL 1-AXIS.RES-P SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS
Okay, here are the key details for the Siemens 6SN1118-1NJ01-0AA0 UNIVERSAL CONTROL 1-AXIS.RES-P SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS:
1. Product Overview:
- This is a 1-axis universal control unit from the Siemens SIMODRIVE 611 digital drive system.
- It is part of the UNIVERSAL series, designed for precise control of various motor types.
- The unit supports resolver-based position feedback and can be used for speed/torque setpoint positioning control.
- The control unit is expandable with additional options.
2. Key Features:
- 1-axis control functionality
- Resolver-based position feedback
- Speed/torque setpoint positioning control
- Expandable with optional features
- Integrated power supply and control electronics
3. Technical Specifications:
- Control Axes: 1
- Position Feedback: Resolver
- Control Modes: Speed/torque setpoint positioning control
- Expandability: Additional options available
- Power Supply: 3-phase AC
- Control Electronics: Integrated
4. Functionality and Applications:
- The Siemens 6SN1118-1NJ01-0AA0 UNIVERSAL CONTROL 1-AXIS.RES-P SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS is designed for precise control of various motor types in industrial automation and machinery applications.
- The speed/torque setpoint positioning control, combined with resolver-based position feedback, makes it suitable for applications that require accurate motion control, such as CNC machines, industrial robots, packaging machinery, and other industrial automation processes.
- The expandability feature allows the control unit to be customized with additional options to meet specific application requirements.
5. Integration and Configuration:
- The control unit is designed to be integrated within the SIMODRIVE 611 digital drive system from Siemens.
- It can be configured and programmed using the Siemens engineering software, such as SIMODRIVE Startdrive or SINUMERIK CNC programming tools.
- The integration with the SIMODRIVE 611 system allows for seamless communication and control of the motor drives.
6. Advantages:
- 1-axis control functionality for precise motion control
- Resolver-based position feedback for reliable and accurate positioning
- Speed/torque setpoint positioning control for versatile motion control
- Expandability with optional features to accommodate specific requirements
- Integrated power supply and control electronics for a compact design
- Seamless integration with the SIMODRIVE 611 digital drive system
7. Certifications and Approvals:
- The Siemens 6SN1118-1NJ01-0AA0 UNIVERSAL CONTROL 1-AXIS.RES-P SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific application and region of use.
Please let me know if you need any additional information or have further questions about this Siemens control unit.
| Product |
| Article Number | 6SN1118-1NJ01-0AA0 |
| Product Description | *spare part* SIMODRIVE 611 U HR 1-axis Control Unit resolver speed/torque setpoint positioning expandable by options |
| Product family | Not available |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| PLM Effective Date | Product discontinued since: 30.09.2013 |
| Notes | Successor hint: SUCCESSOR: 6SN1118-1NJ01-0AA1 (FROM FW 8.3) |
| Successor information |
| Successor | 6SN1118-1NJ01-0AA2 |
| Successor Description | ***SPARE PART*** SIMODRIVE 611 U HRS2 1-AXIS CONTROL-LOOP BLOCK RESOLVER SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS |
| Price data |
| Price Group | S60 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : 9N9999 / AL : 3A225 |
| Estimated dispatch time (Working Days) | 10 Day(s) |
| Net Weight (kg) | 0,790 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515014157 |
| UPC | Not available |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD91.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
|
|

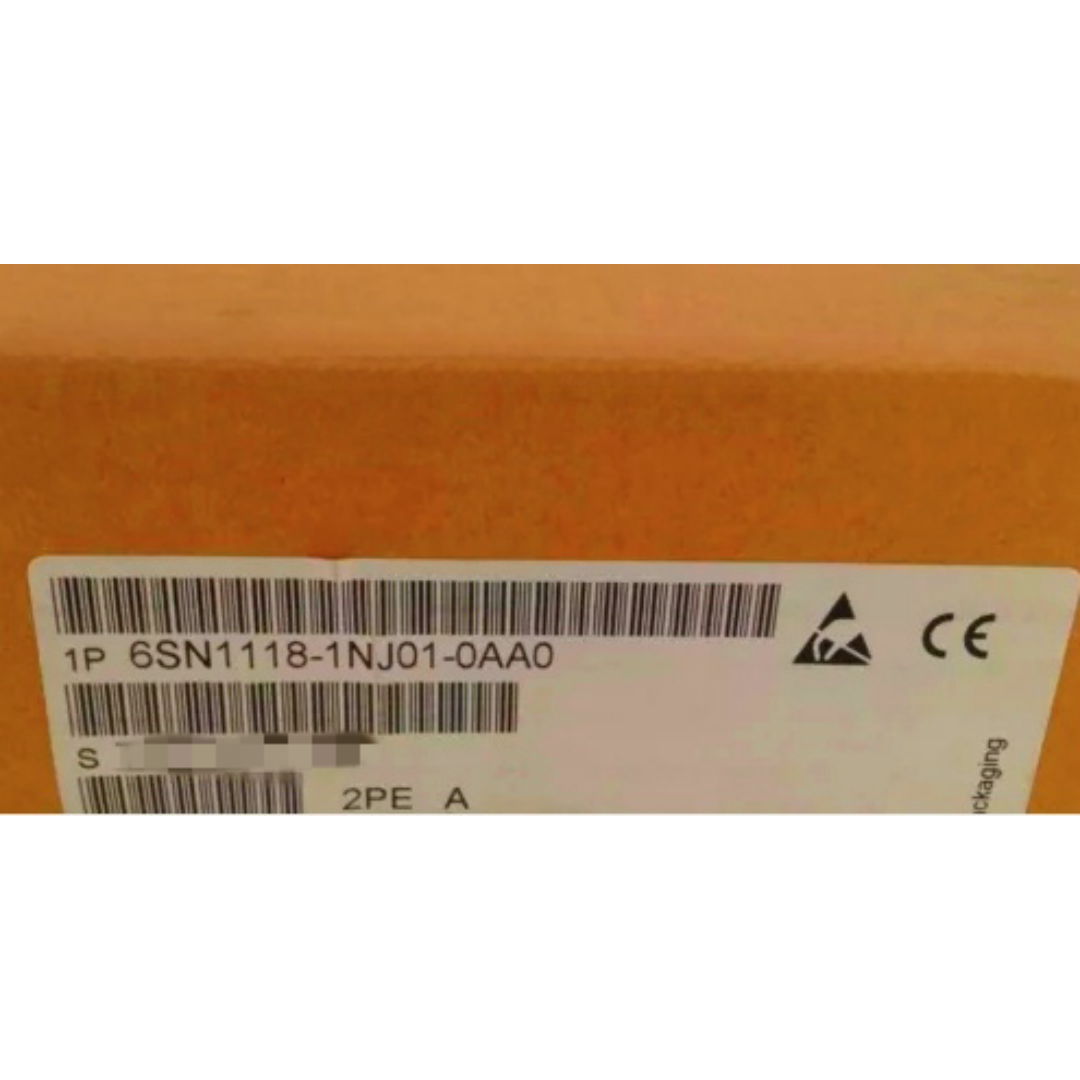

SIEMENS 6SN1118-1NJ01-0AA0 UNIVERSAL CONTROL 1-AXIS.RES-P SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS Images
|
